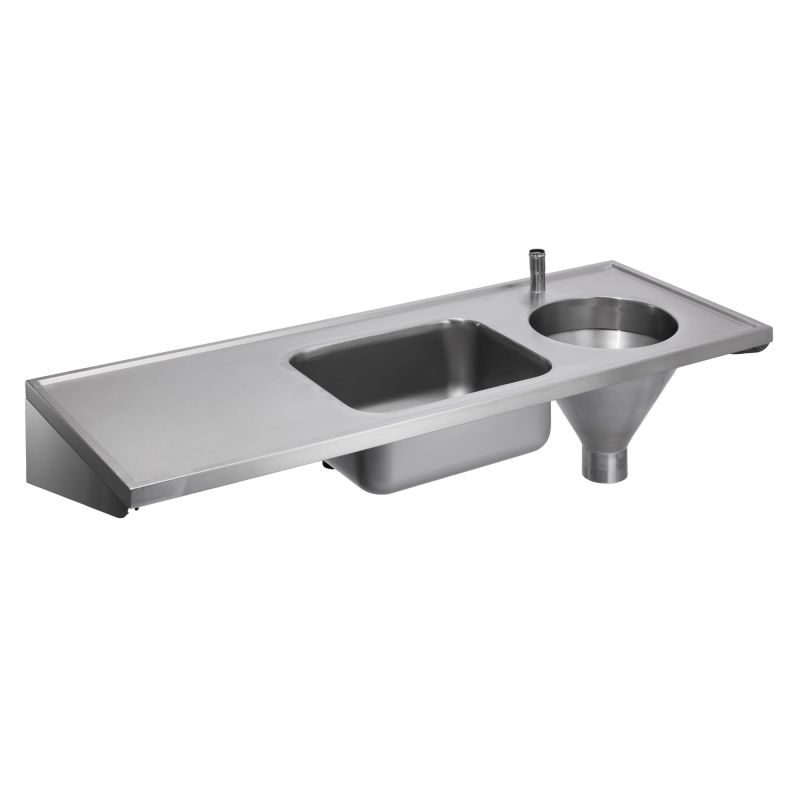

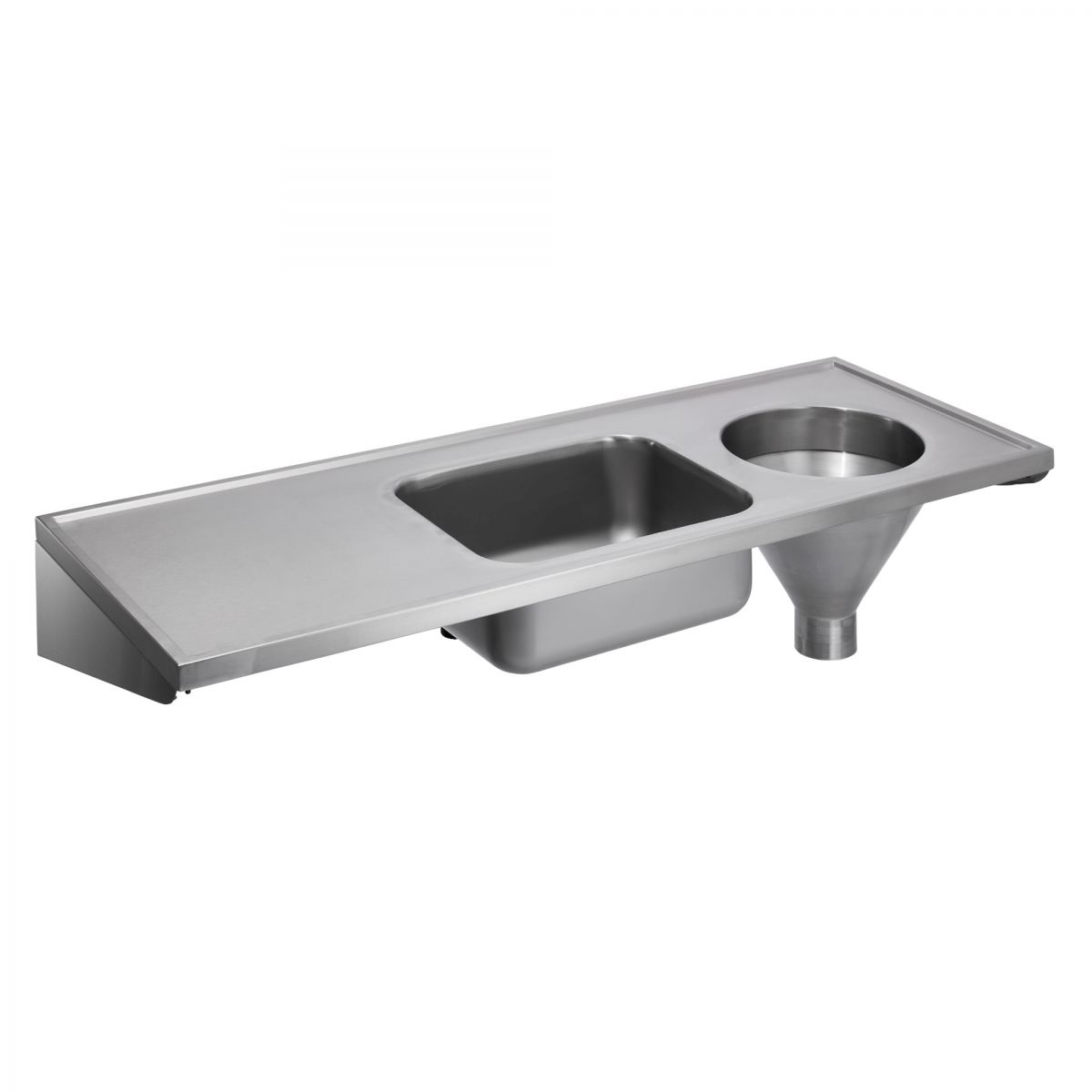

Sluice Sink with Sink and Plain Top
Sluice Sink with Sink and Plain Top
Product Code: MHP821
Description
- Model MHP821 (formerly MHP801) is our sluice sink with sink and plain top
- Manufactured from grade 304 stainless steel, 1.2mm thick
- Choice of top entry for use with exposed cisterns or back entry for use with concealed cisterns
- Top entry version includes a 520mm stainless steel flush pipe
- Back entry version does not include a flush pipe

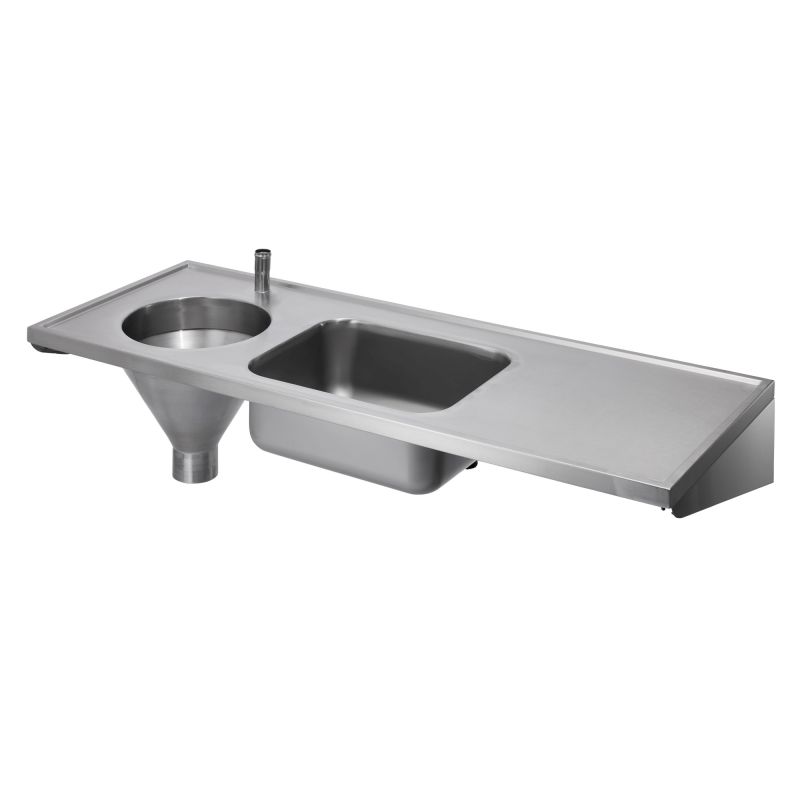

- Choice of left or right hand hopper
- Supplied with stainless steel wall brackets and 38mm flush grated waste fitting
- 110mm OD outlet
- Full flushing rim (requires cistern)
- The pressed top conforms to HBN 00-10 Part C and HTM64 standards
- Tap holes drilled to customer specification
- Anti drip edge to all four sides
- Predominantly used in hospitals and care homes
Delivery
- From stock, usually 1 to 3 working days

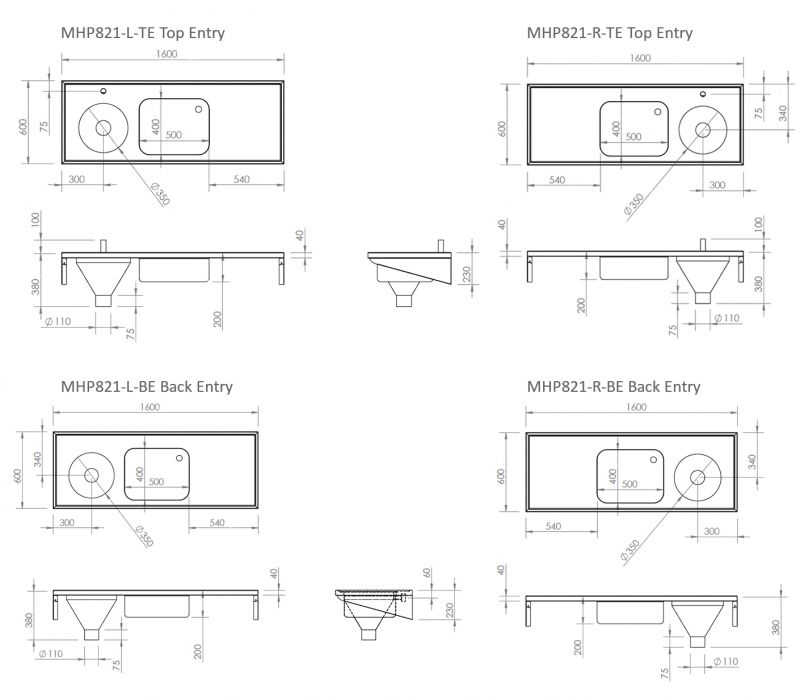

Dimensions
- Height: 400mm
- Overall length: 1600mm
- Front to back: 600mm
- Bowl dimensions: 500mm x 400mm x 200mm
Optional Extras
- MHP-GRID - stainless steel hinged sluice grid
- MHP-FL - front support legs

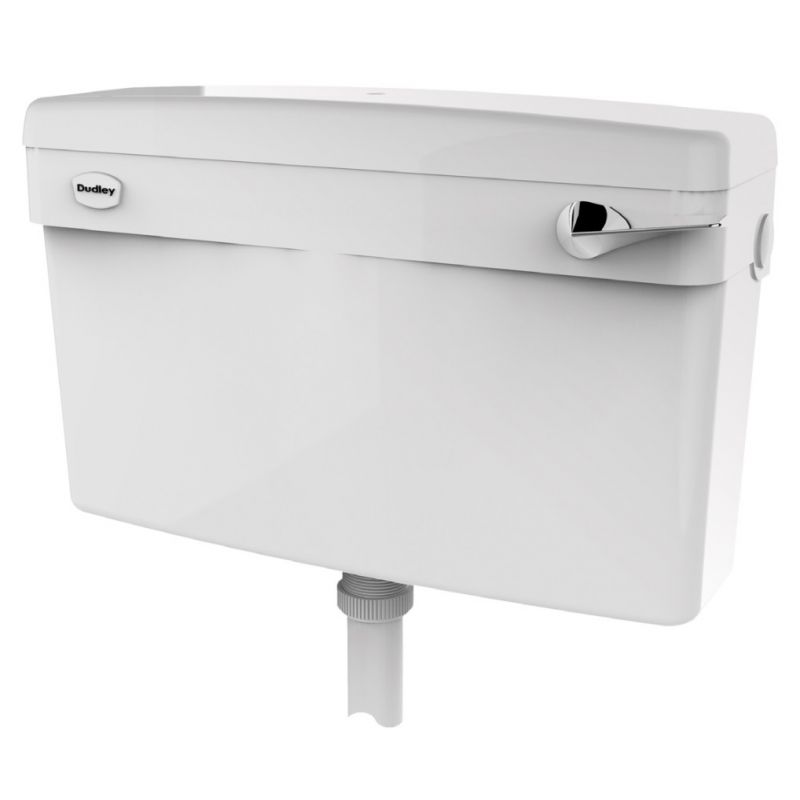

- MHP-CISTERN-PLASTIC - plastic exposed cistern

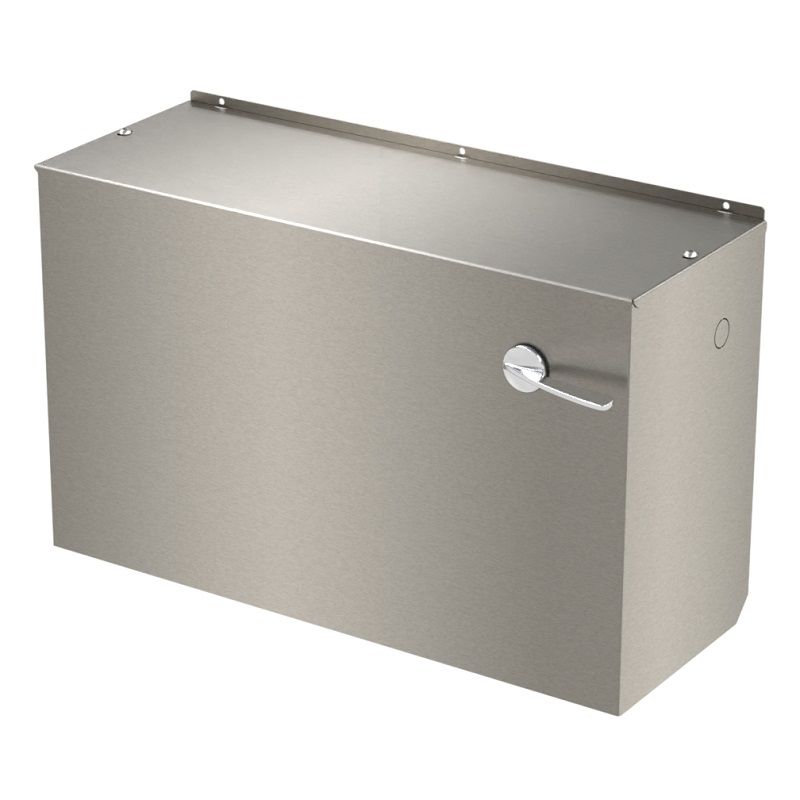

- MHP-CISTERN-STAINLESS - stainless steel exposed cistern
- WC142-LL-WL - manual plastic cistern with chrome plated lever
- WC142-LL-AIR-50 - air operated cistern with chrome plated button, 50mm max wall
- POLYPTRAP - 4" polypropylene P trap
- POLYSTRAP - 4" polypropylene S trap
- RES-BOTTLETRAP - plastic resealing bottle trap
- MHP-STRAINER - stainless steel sluice sink outlet strainer
- TAPS FROM OUR EXTENSIVE RANGE
FOR ANY ENQUIRIES OR QUOTES PLEASE CONTACT US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
