Product Code: MHP824
Description
- Model MHP824 (formerly MHP804) is our sluice sink
- Manufactured from grade 304 stainless steel with a satin polished finish
- Choice of top entry for use with exposed cisterns or back entry for use with concealed cisterns
- Top entry version includes a stainless steel flush pipe and grating as standard
- Back entry version does not include a flush pipe or grating as standard
- Supplied with stainless steel wall brackets and 38mm flush grated waste fitting
- 110mm plain spigot outlet
- Full flushing rim (requires cistern)
- The pressed top conforms to HBN 00-10 Part C and HTM64 standards
- Anti drip edge to all four sides
- Predominantly used in hospitals and care homes
Back Entry Drilling Options
- No tap hole
- Single left or right hand tap hole for lever mixer swivel tap (product code TVS6743LQMMT)
- Fixing holes for stainless steel hinged grid (product code MHP-GRID)
- Please note if you have a tap hole you cannot have a grid. It is one or the other.
Delivery
- From stock, usually 1 to 3 working days

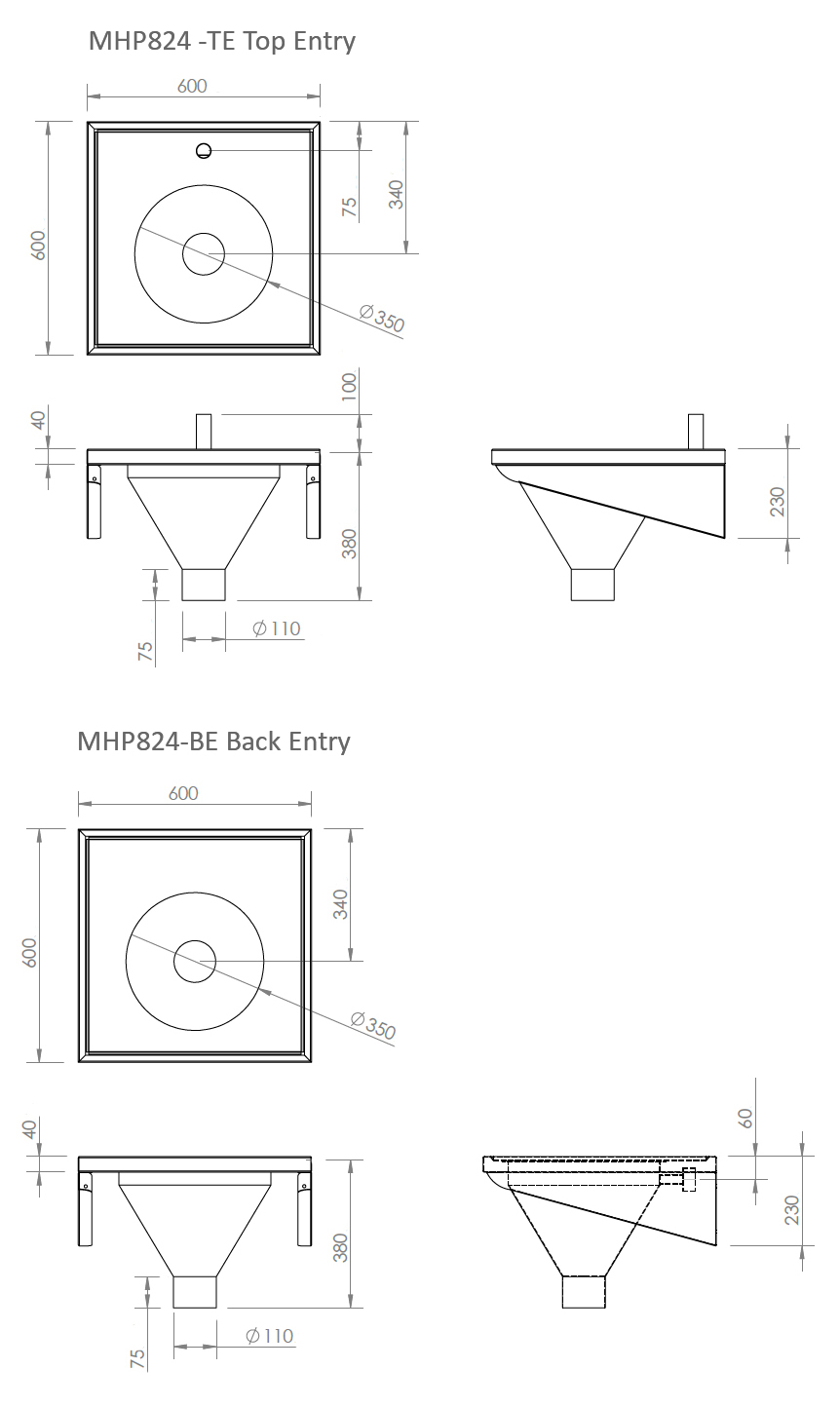

Dimensions
- Height: 400mm
- Overall length: 600mm
- Front to back: 600mm
Optional Extras
- MHP-FL - front support legs (only suitable for back entry model)
- MHP-CISTERN-PLASTIC - plastic exposed cistern
- MHP-CISTERN-STAINLESS - stainless steel exposed cistern
- WC142-LL-WL - manual plastic cistern with chrome plated lever
- WC142-LL-AIR-50 - air operated cistern with chrome plated button, 50mm max wall
- POLYPTRAP - 4" polypropylene P trap
- POLYSTRAP - 4" polypropylene S trap
- MHP-STRAINER - stainless steel sluice sink outlet strainer
