Pedestal Eye / Face Wash, Plastic Bowl

Product Code: S0320

Model S0320 is our free standing eye wash with plastic bowl. Complete with plastic eye/face spray heads, an inline stainer and stay-open 1/2" ball valve with a push handle operation. Complete with cast iron floor flange to securely bolt the unit to the floor.

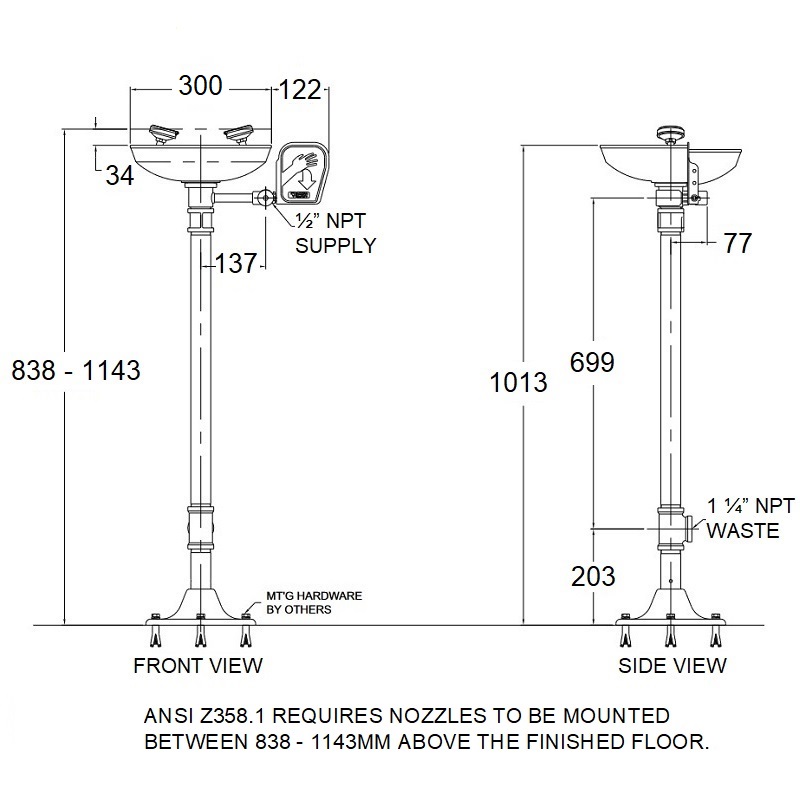

Dimensions

Height (spray head to floor): 1059mm
Height (bowl to floor): 1025mm
Diameter: 300mm

Material and Specifications

ABS yellow plastic bowl, 300mm diameter
ABS yellow plastic eye wash spray heads with flip open dust covers
1/2" chrome plated brass stay open ball valve with stainless steel push handle
Yellow coated galvanised steel pedestal and cast iron floor flange
32mm waste fitting
BSP adaptors are supplied for all NPT pipe connections
Internal filters and flow controls
Flow rate 14 litres per minute
ANSI Z358.1 compliant, includes safety sign and weekly test card

Delivery

In stock, 1 to 2 working days
