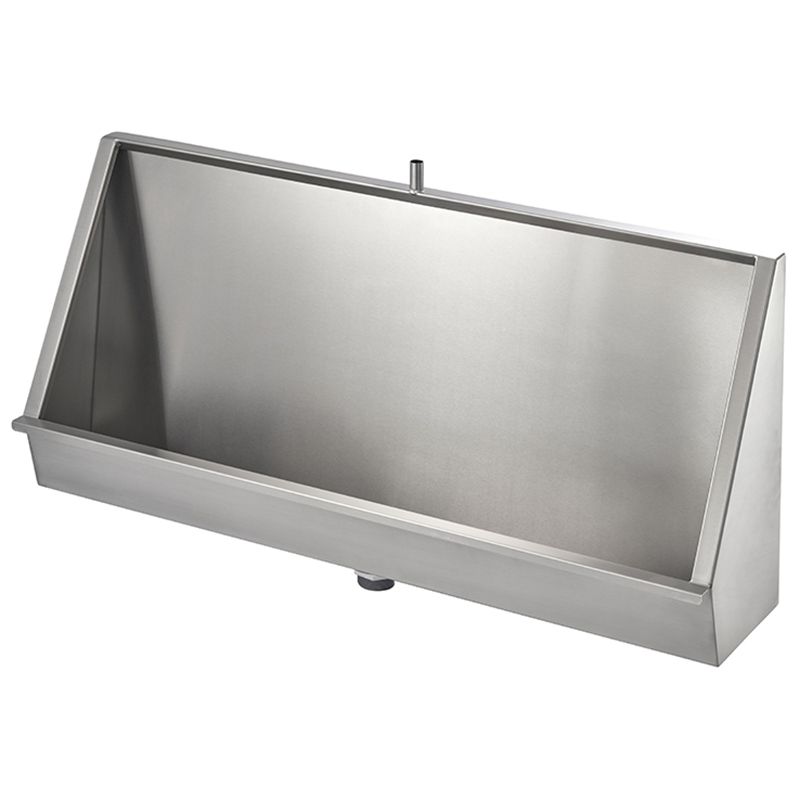

Heavy Duty Stainless Steel Wall Hung Trough Urinal

- Model UR064 is a heavy duty wall mounted trough urinal
- Manufactured from 1.6mm thick grade 304 stainless steel, for ultimate vandal resistance
- Ideal for installation in high traffic areas such as public toilets and sports stadiums
- Four sizes in stock: 1200mm, 1500mm, 2100mm and 2400mm
- Cost effective solution compared to individual bowl urinals and easier to install
- Ends suitable for leaving exposed or fitting against the wall
- Concealed sparge pipe to prevent vandalism
- Top entry flushpipe connection for exposed cistern

Includes
- Central 50mm (2”) BSP dome grated waste fitting

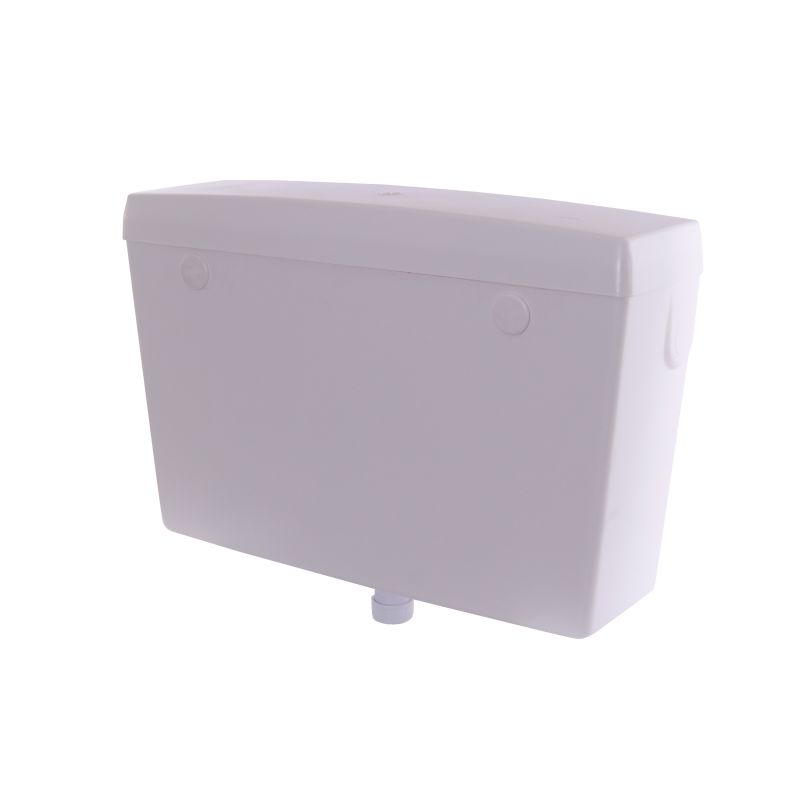

- Plastic exposed automatic cistern (9.0L for 1200mm urinal | 13.65L for 1500-2400mm urinal)

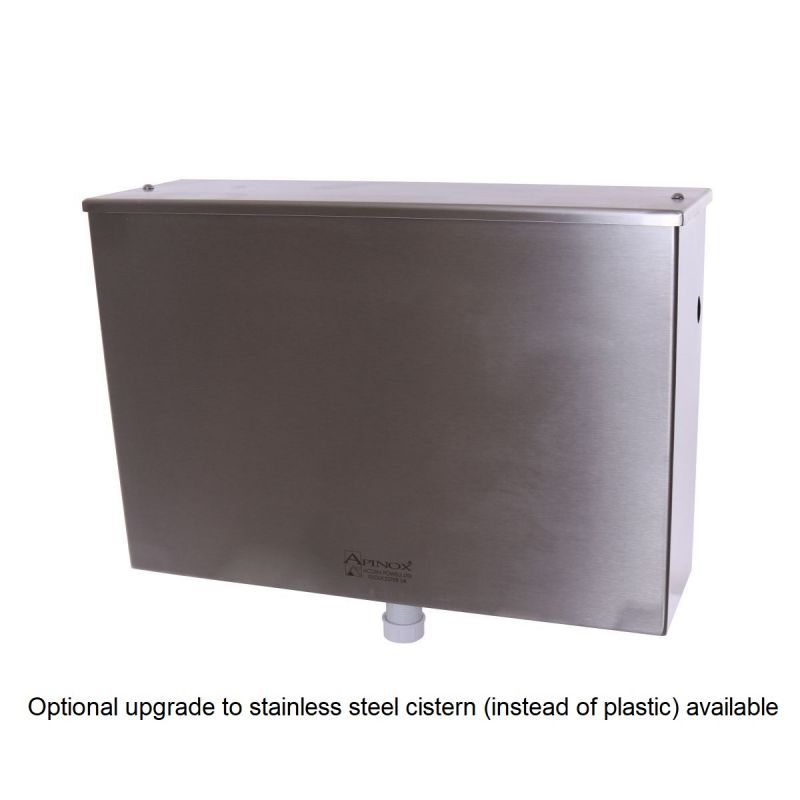

- Optional upgrade to stainless steel cistern (instead of plastic) available
- Stainless steel 22mm dia. flushpipe and clips
- Integral wall mounting points

Delivery
- From stock, usually 1 to 2 working days

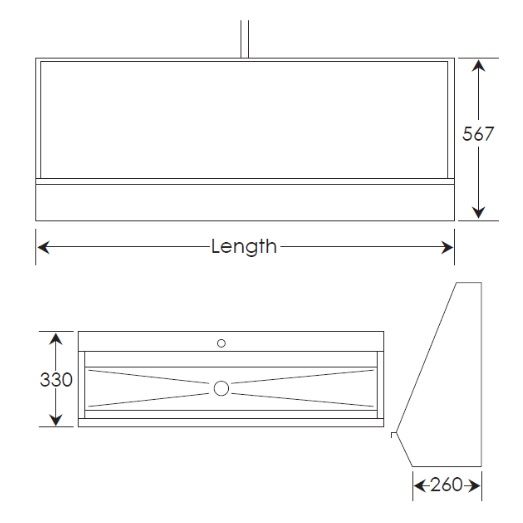

Dimensions
- Height: 567mm
- Projection: 330mm
- Lengths: 1200mm | 1500mm | 2100mm | 2400mm
- Plastic cistern: 505mm (W) x 150mm (D) x 327mm (H)
- Stainless steel cistern: 503mm (W) x 190mm (D) x 318mm (H)

Weights
- 1200mm: 25kg | 1500mm: 28kg | 2100mm: 35kg | 2400mm: 42kg

Mounting Heights (Recommended)
- From front lip to floor: adult 610mm | junior 510mm

Optional Extras
2INBSP-PTRAP - plastic 2” swivel waste P trap with 75mm water seal

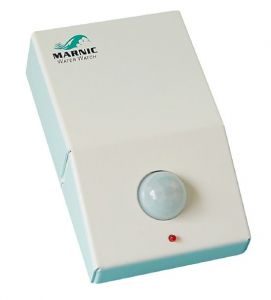

MWB-B/M - marnic water watch flush controller, battery or mains operated
Upgrade to stainless steel cistern (instead of plastic)
