Manual WC Cistern

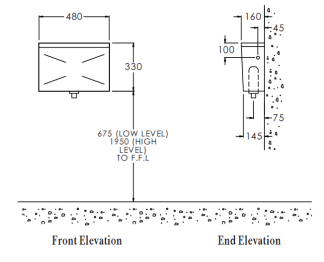

Manual stainless steel cistern dimensions

Product Code: WC132-LL

Model WC132 is a manual stainless steel cistern designed for use with our WC pans, with exposed surface mounting. This is suitable for low level installations with an internal overflow. These cisterns are manufactured from grade 304 stainless steel with all exposed surfaces polished to a satin finish. The cistern is supplied with a lid, flushing mechanism and a stainless steel 90 degrees flush pipe.

Dimensions

Height: 330mm
Front to back: 160mm
Width: 480mm

Material and Specifications

Grade 304 stainless steel
Supplied with dual flush syphon, float operated valve and a stainless steel 90 degrees flush pipe
Left-hand side inlet
Internal overflow

Delivery

10 to 15 working days
