Product Code: WE316
Description
- Model WE316 is a wall mounted wash trough with pre drilled tap holes
- This wash trough replaces our old WE309 wash trough
- Constructed from grade 304 stainless steel, 1.2mm thick
- Lower tap ledge to reduce splashed water running off of the sides
- Pre drilled with a single 35mm tap hole per user
- The tap holes will be suitable for most mixer, infrared, time flow and the traditional lever or cross head taps
- Heavy duty construction for everyday use
- Available in 8 standard stock lengths (bespoke lengths available upon request)
Includes
- Integral wall mounting points
- Centre 38mm flush grated waste fitting (no plug or overflow)
- Pre-drilled tap holes for single 35mm tap hole per user
Delivery
- From stock, usually 1 to 3 working days

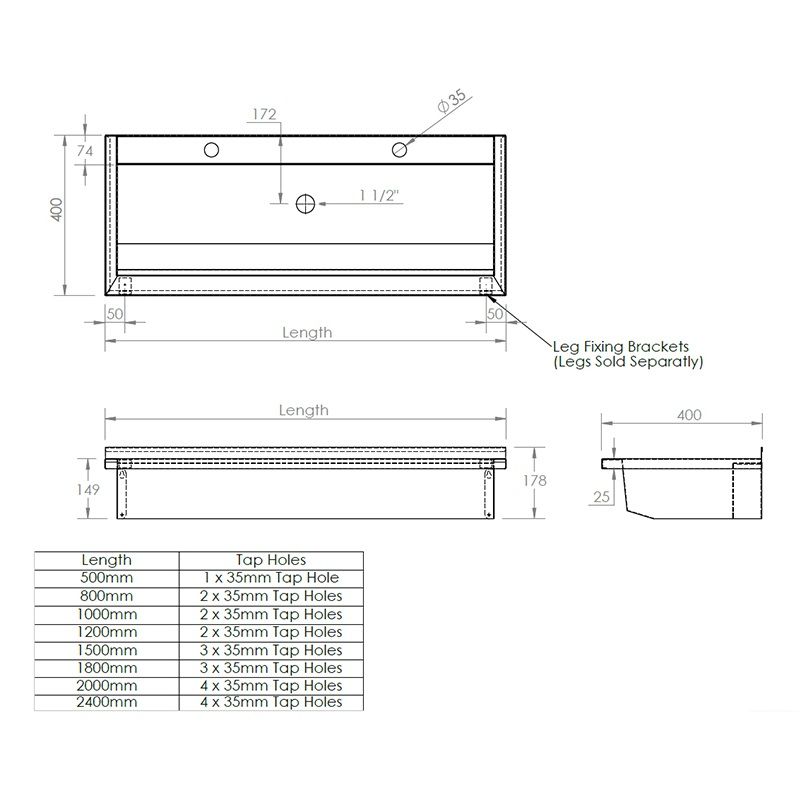

Dimensions
- This wash trough can be supplied at different lengths
- Lengths available: 500mm | 800mm| 1000mm | 1200mm |1500mm | 1800mm | 2000mm | 2400mm
- Height: 149mm
- Front to back: 400mm
- Rear upstand: 30mm
- Tap Ledge: 74mm
Pre-drilled tap holes
- 500mm length – single 35mm tap hole
- 800mm length – two single 35mm tap holes
- 1000mm length – two single 35mm tap holes
- 1200mm length – two single 35mm tap holes
- 1500mm length – three single 35mm tap holes
- 1800mm length – three single 35mm tap holes
- 2000mm length – four single 35mm tap holes
- 2400mm length – four single 35mm tap holes
Where can this be installed?
- This wash trough is ideal for locations where multiple users require hand washing facilities at the same time
- Can be installed inside or outside (with appropriate safety measures for water supplies in freezing weather)
- Ideal for schools, colleges, factories etc
- Front legs are available for extra support where there is a likelihood that users will lean or sit on the front
Optional Extras
WE-STANDARD-FL - Stainless steel front support legs (950mm unit height)
WE-NURSERY-LEGS - Stainless steel front support legs (600mm unit height)
LARGE-PLASTIC-BOTTLETRAP – 1.5" plastic bottle trap
LARGE-CHROME-BOTTLETRAP – 1.5" chrome plated bottle trap
WE305-TPCVR - Stainless steel trap cover
TAPS AVAILABLE FROM OUR EXTENSIVE RANGE
FOR ANY ENQUIRIES OR QUOTES PLEASE CALL US ON 01452 721211 OR SEND US AN EMAIL TO [email protected]
|
